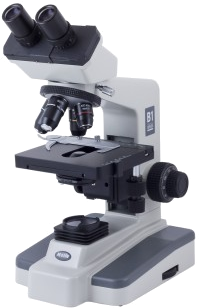

This full-sized microscope range provides users with a sturdy and solid base for professional microscopy.
The B1 Series is available with many accessories to suit most microscopy requirements in academic, veterinarian and simple lab tasks.
B1-223A
Specification Details |
| Optical system |
Finite Optical System, 160mm |
| Observation tube |
Trinocular, sliding type |
| Interpupillary distance |
55-75mm |
| Trinocular light split |
100:0 / 20:80 |
| Inclination |
30 inclined, 360 rotating |
| Eyepiece(s) |
WF 10X / 18mm |
| Nosepiece |
Quadruple revolving nosepiece with click stops |
| Objective classification |
Achromatic, DIN |
| Objective information |
4X / 0.10 (WD 6.8mm), 10X / 0.25 (WD 2.4mm),
40X / 0.65/S (WD 0.53mm), 100X / 1.25/S-Oil (WD 0.13mm)
|
| Objective mounting thread |
W 4/5" x 1/36" (RMS standard) |
| Stage |
Built-in low position coaxial mechnical stage with sample holder |
| Stage size |
140 x 135mm |
| Mechanical stage X & Y range |
78 x 50mm |
| Upper limit stop |
Preset but adjustable |
| Condenser |
Rack & pinion focusable 1.25 N.A. Abbe Condenser with iris diaphragm and filter holder |
| Focus mechanism |
Coarse and fine focusing system with tension adjustment |
| Fine focus precision |
2um minimum increment |
| Z-axis movement |
27mm |
| Illumination |
12V / 20W Halogen illumination with intensity control |
| Transformer |
Internal |
| Power supply |
220 - 240V (CE) |
| Accessories included |
Blue, yellow and green filters, dust cover and immersion oil |
| Length x Width x Height |
245 x 190 x 380 |
| Weight (kg) |
6.8 kg |
